Morso Model NEH / NXLEH Notch Cutting Machine with Touch Screen

Morso Model NEH and NXLEH are electric/hydraulic guillotines for cutting window bars, mullions and cabinet front frames requiring haunch joints.

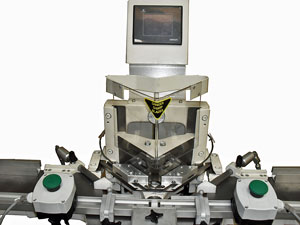

Both models are now available with touch screen operator panel from where you have an easy control to the functions of the machine.

For example the operator can easily adjust and change the following parameters:

  • Cutting height,
  • Start of cutting position,
  • Number of cuts in the cutting cycle. Makes it easy to switch from hard to soft wood,
  • Size of shaving cut for the extremely superb quality finish,
  • Service function which keeps the blades down during the set up of the machine,
  • Function which doubles the number of cuts in the cutting cycle if needed,
  • Adjustment of return stroke,
  • Moulding clamps on or off,
  • Automatic adjustable stop time for turning off automatically when not used,
  • Electrical parameters all shown in the display,
  • Adjustable counter for serial production,
  • And more options.

Morso Model NEH and NXLEH with touch screen are designed for high volume production where easy and quick adjustment is needed.

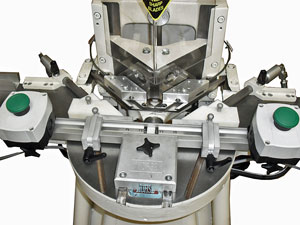

The hydraulic cutting action is activated by the operation of dual-hand control, ensuring total safety for the operator.

The noise level is still below 70 db, and it can even get lower if a noiseless version is chosen.

The Morso Model NEH and NXLEH with finger touch screen is available with either single or three-phase motor, 50 or 60 hz motor and voltage at request.

To compare Morso Model NEH and NXLEH with a moulding machine, the following points must be considered:

  • A cleaner and more constantly accurate cut will be produced with Morso Model NEH and NXLEH,
  • The Morso Model NEH and NXLEH is almost silent by comparison,
  • Tthe Morso Model NEH and NXLEH produces no dust and therefore requires no extraction,
  • The Morso Model NEH and NXLEH requires less than 15 minutes to change the cutting blades, to set-up, and to the positioning of the stops,
  • As the blades wear, the 45° angle remains unchanged, ensuring consistently accurate joints.

The Morso Model NEH and NXLEH with finger touch is supplied with the same standard equipment as the standard Morso Model NEH and NXLEH.

Furthermore we can offer the following extra accessories:

  • Manually or fully automatic digital stops,
  • Fences 2,500 mm supplied with extra extension table of cast iron and supporting leg,
  • Nose width from 3 - 5 mm available,
  • Nose width up to 40 mm available.

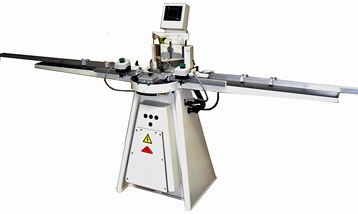

Morso NEH  / NXLEH with touch screen

Technical data for
Morso Model NEH / NXLEH Notch Cutting Machine
with Touch Screen
Nose width ( Morso NSEH and NXSEH ) 6 - 20 mm
Nose width ( Morso NLEH and NXLEH ) 12 - 26 mm
Cutting width, max. ( Morso NSEH and NLEH ) 70 mm
Cutting height, max. ( Morso NXSEH and NXLEH ) 200 mm
Cutting height, max. 140 mm
Fences, left and right 1,500 mm
Extension tabls, left and right 1,000 mm
Motor, single or three phase 1.1 kW
Working pressure 80 bar
Pumping capacity 7 litre/min
Power transmission 660 kg
Tank contents 8 litre
Net weight 145 kg

Technical data for Morso Model NEH / NXLEH Notch Cutting Machine with Touch Screen

Technical data for Morso Model NEH / NXLEH Notch Cutting Machine with Touch Screen

Technical data for Morso Model NEH / NXLEH Notch Cutting Machine with Touch Screen

Technical data for Morso Model NEH / NXLEH Notch Cutting Machine with Touch Screen


Technical alterations without prior notice reserved.
